ชุดทดสอบแบบไม่ทำลาย (NDT) Test Bar TB-10/TB-10SP/NA-16

Test Bar TB-10/TB-10SP/NA-16

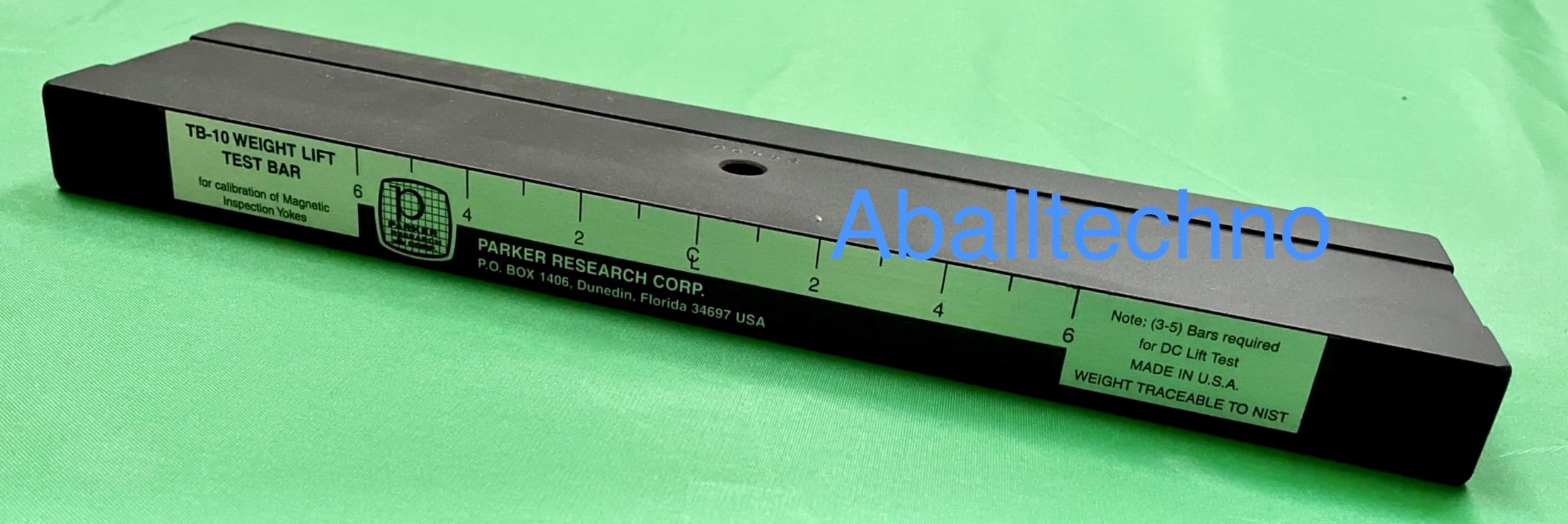

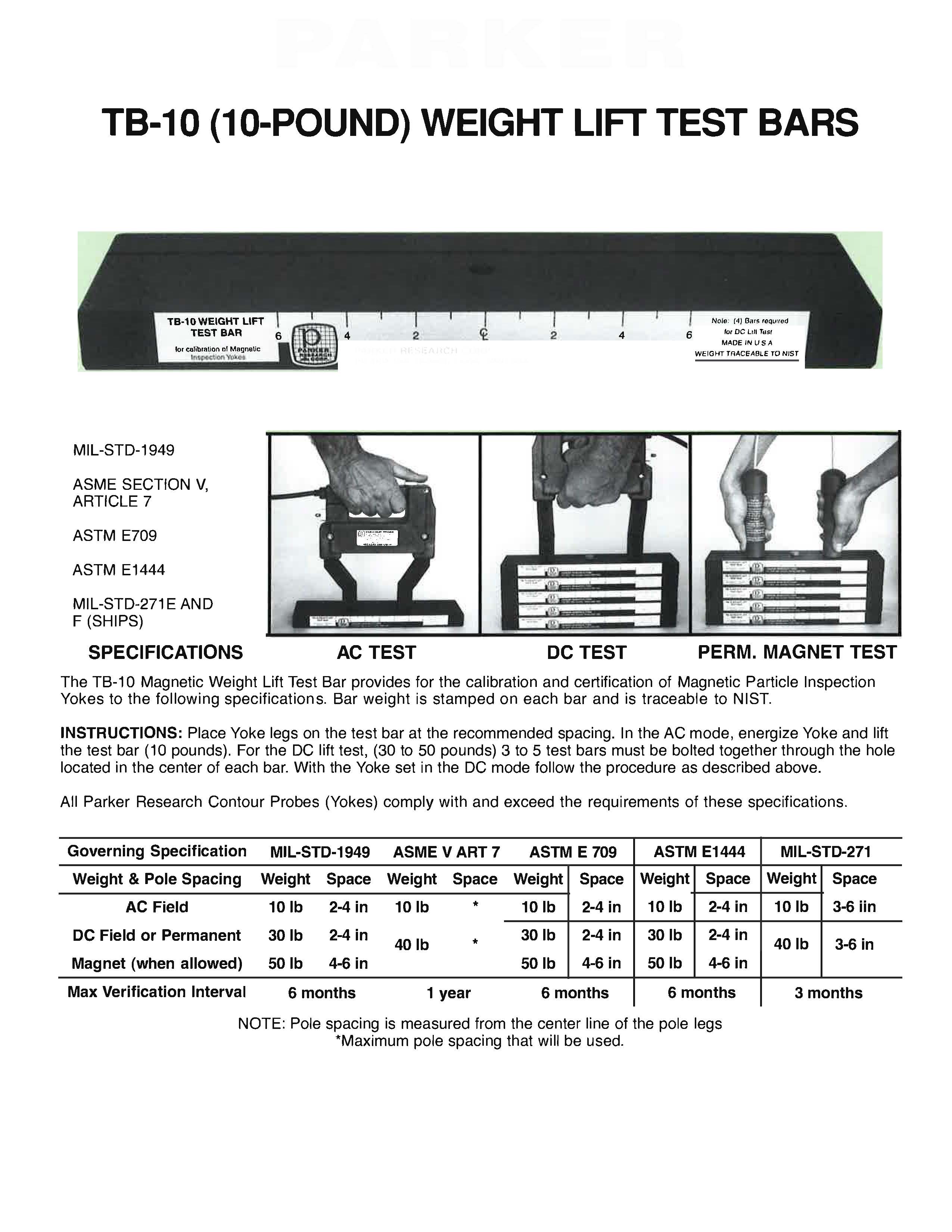

TB-10 Magnetic 10lb Weight Lift Test Bar. Provides for the calibration and certification of Magnetic Particle Inspection Yokes.

Bar weight is stamped on each bar and is traceable to NIST.

SINGLE BAR. Also available in 4-bar or 5-bar sets for compliance with yoke weight lift test

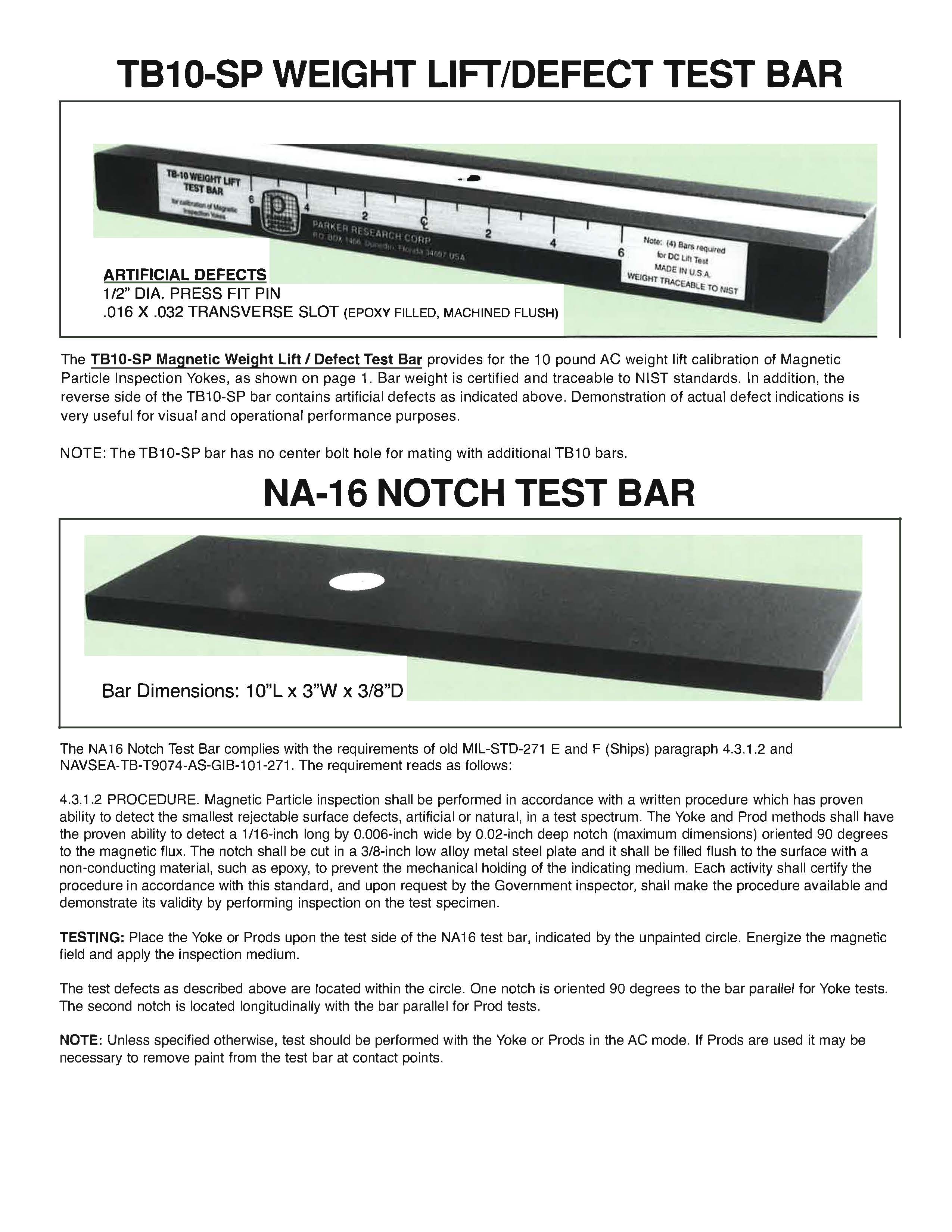

TB-10SP Special Magnetic Weight Lift/Defect Test Bar.

For 10 lb AC weight lift calibration of Magnetic Particle Inspection Yokes. Plus the reverse side contains
artificial defects.

NA-16 Notch Defect Test Bar, able to detect smallest rejectable surface defects. Complies with requirements of MIL-STD-271E and F (Ships), paragraph 4.3.1.2, and NAVSEA-TB-T9074-AS-GIB-010/271.
